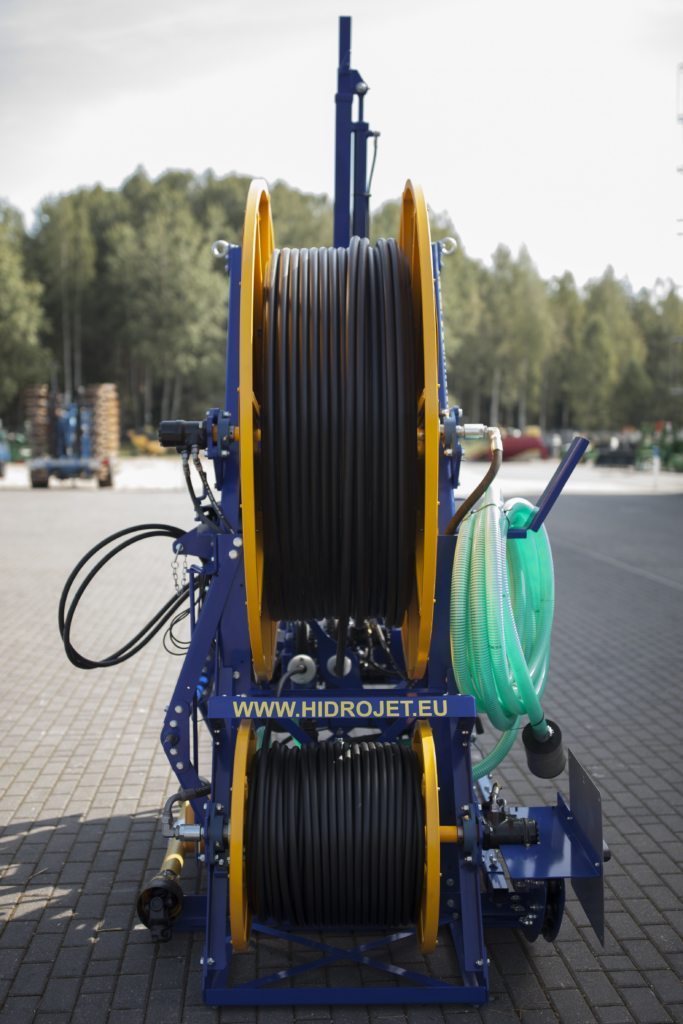

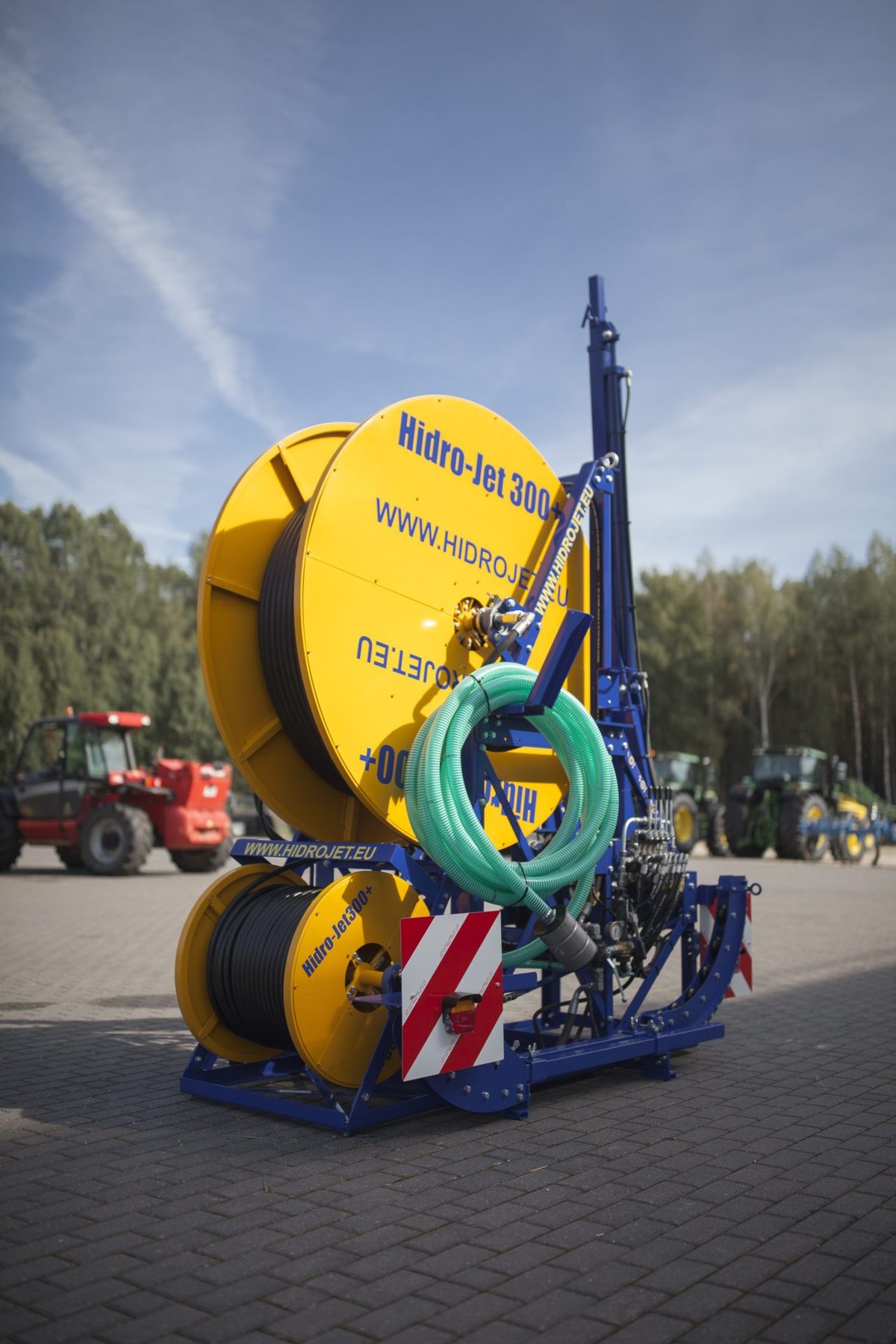

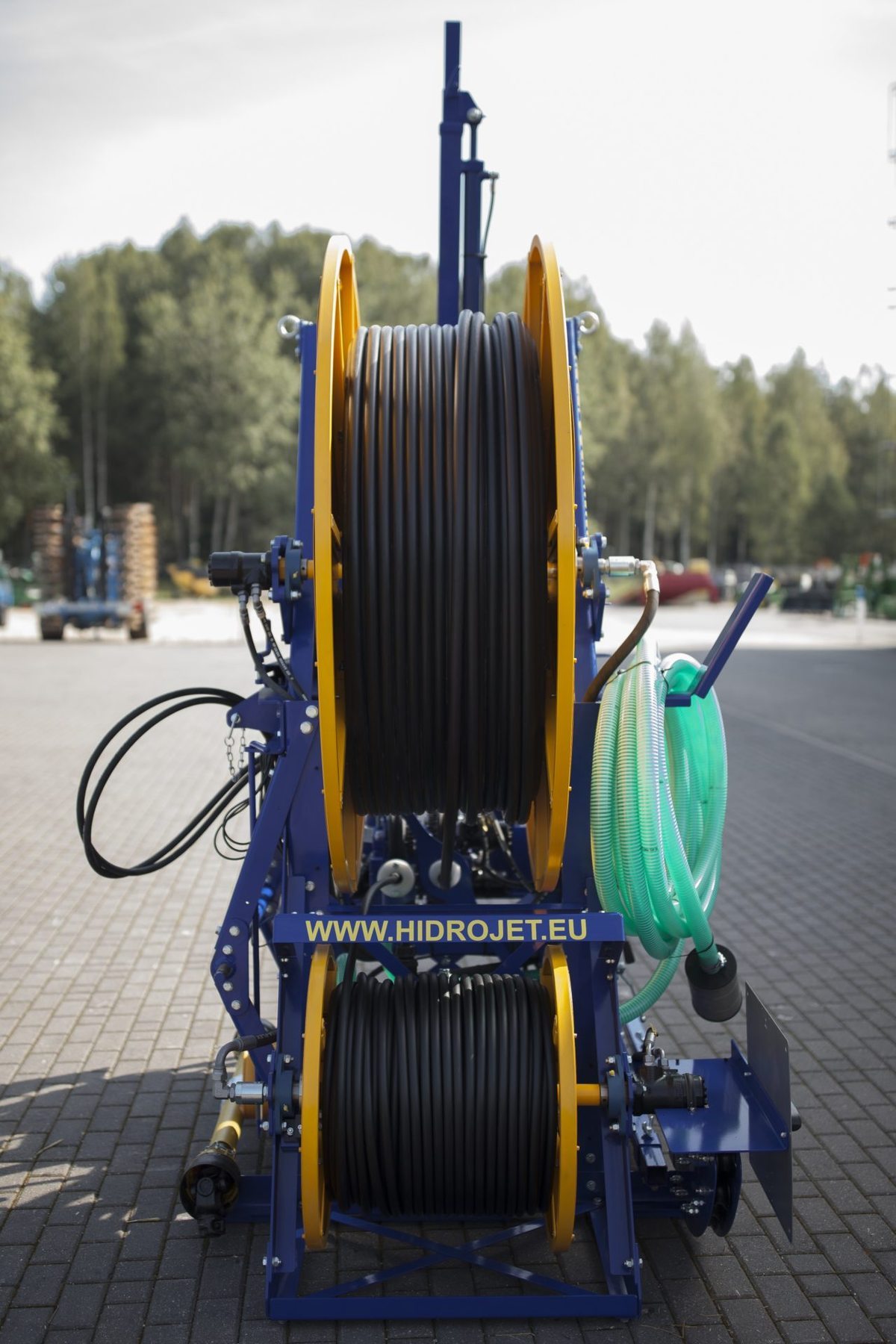

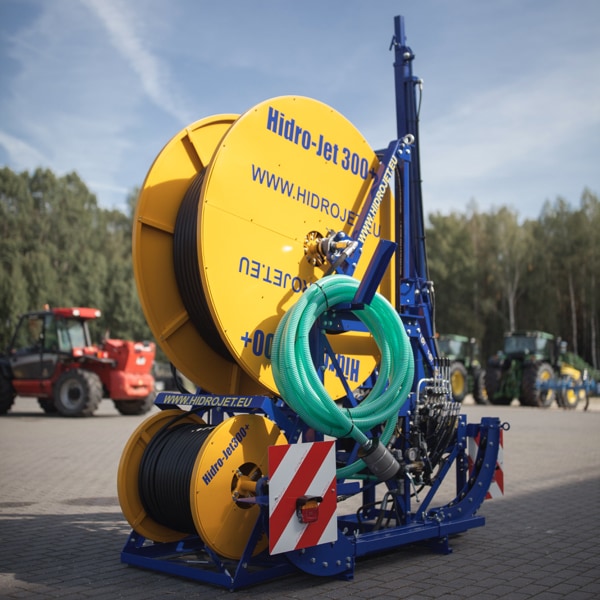

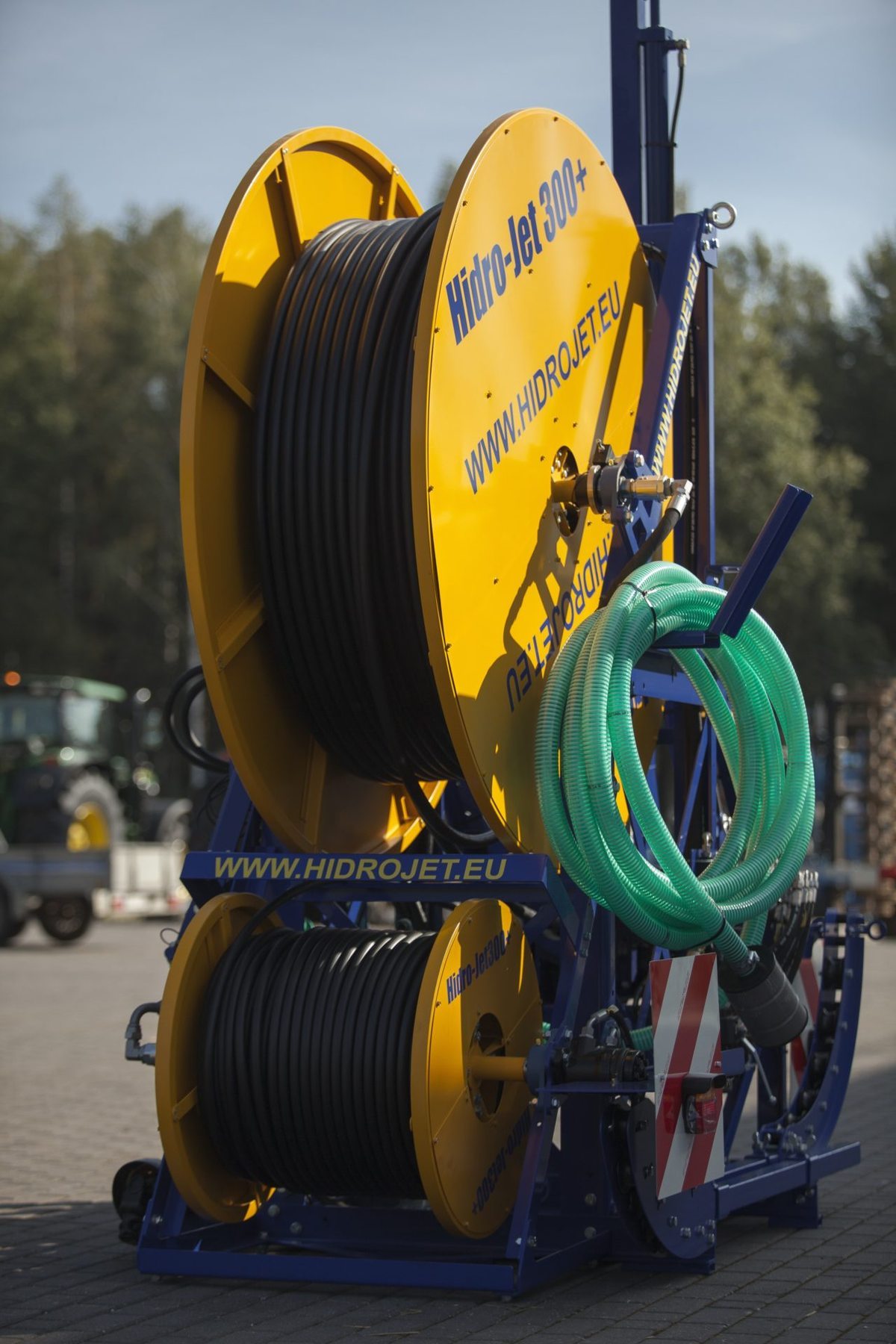

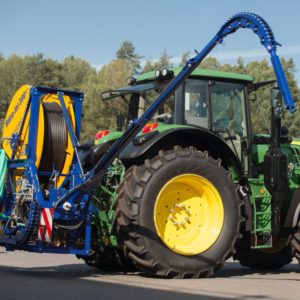

The drain cleaner Hidro-Jet 300+ is unique in that it features two cleaner pipe wheels, a large cleaner wheel with a cleaner pipe 27mm/5.5mm, 300m, 400m or 500m, and a small cleaner wheel with a cleaner pipe DN20/3.0mm, 100m, both wheels of the cleaner operate independently.

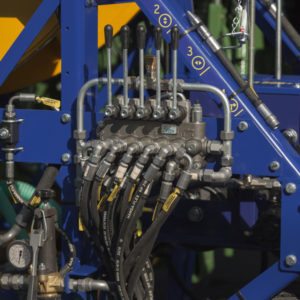

The cleaner operation is provided by a 5-section divider and can be equipped with a hydraulic radio remote control.
The cleaner pipe is hydraulically controlled, hydraulic height and length adjustment possible. If necessary, it is possible to manually extend the length of the lever arm of the cleaner, the hydraulics can also be adjusted horizontally.

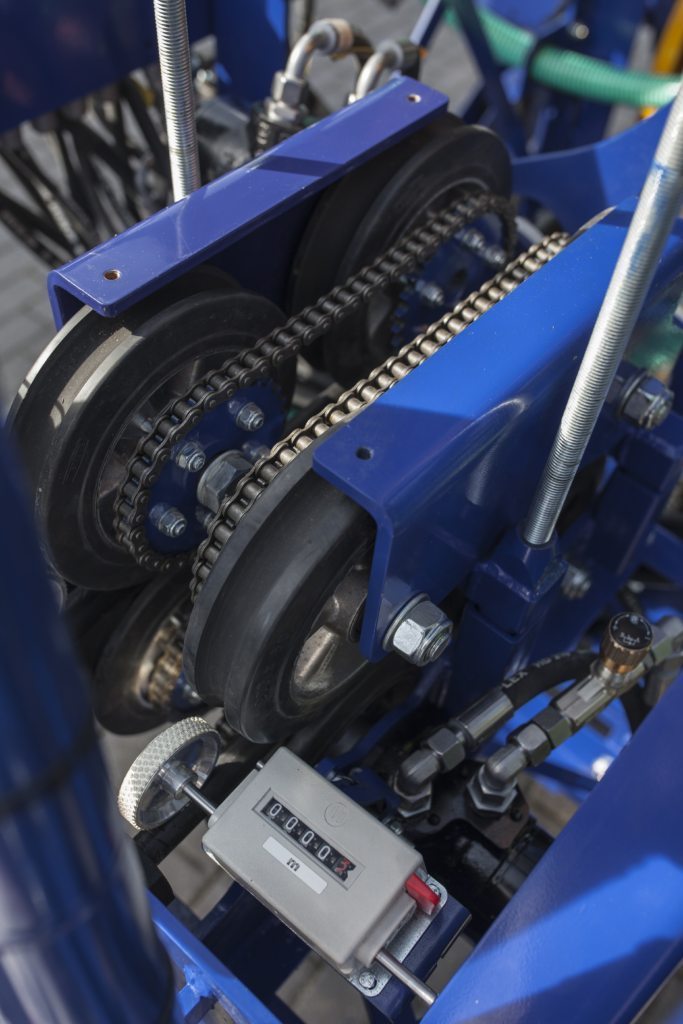

The DN27/5.5 mm cleaner pipe 300m can be fitted with a 400m or 500m cleaner pipe, which is hydraulically pushed into the drainage system. This is provided by drive of four rubber wheels, forming 4×4 drive.
The cleaner pipe DN20/3.0 mm is also hydraulically pushed into the drainage system by two rubber wheel drive.

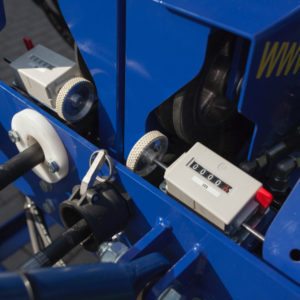

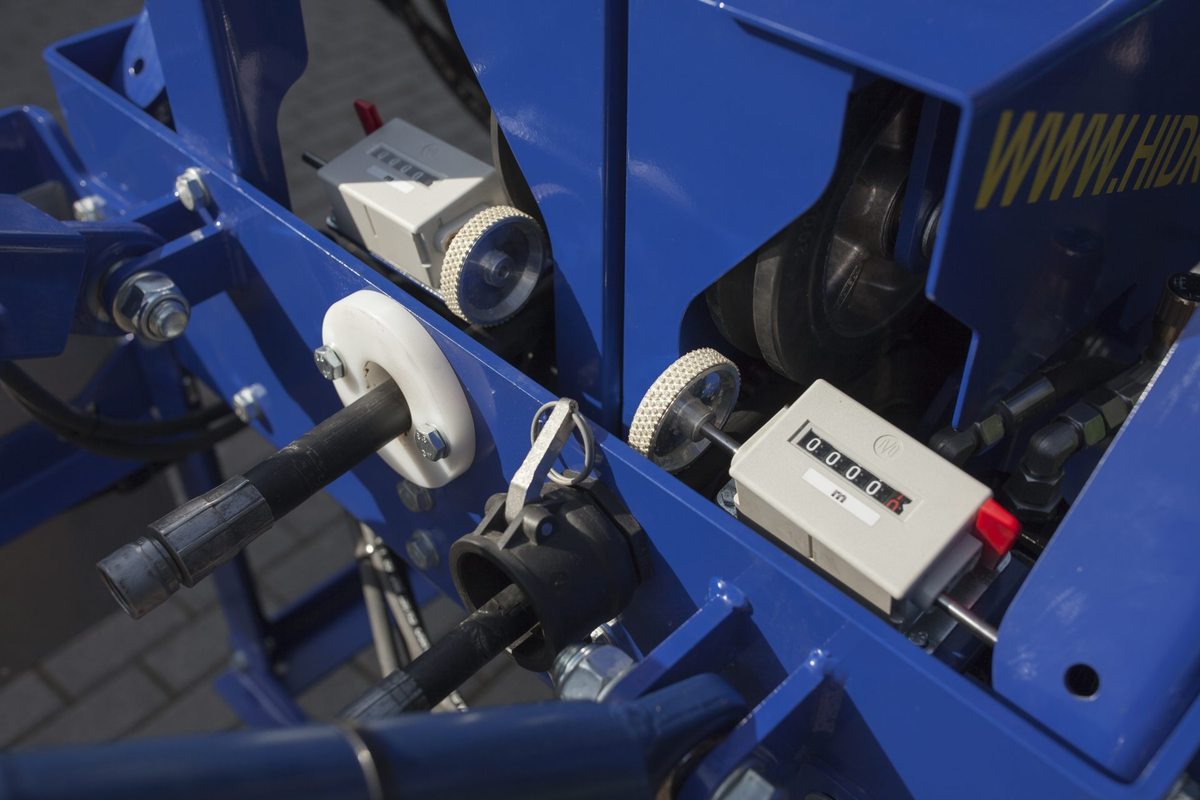

Mechanical meter counter, but as an accessory equipment is the clogging tracking system.

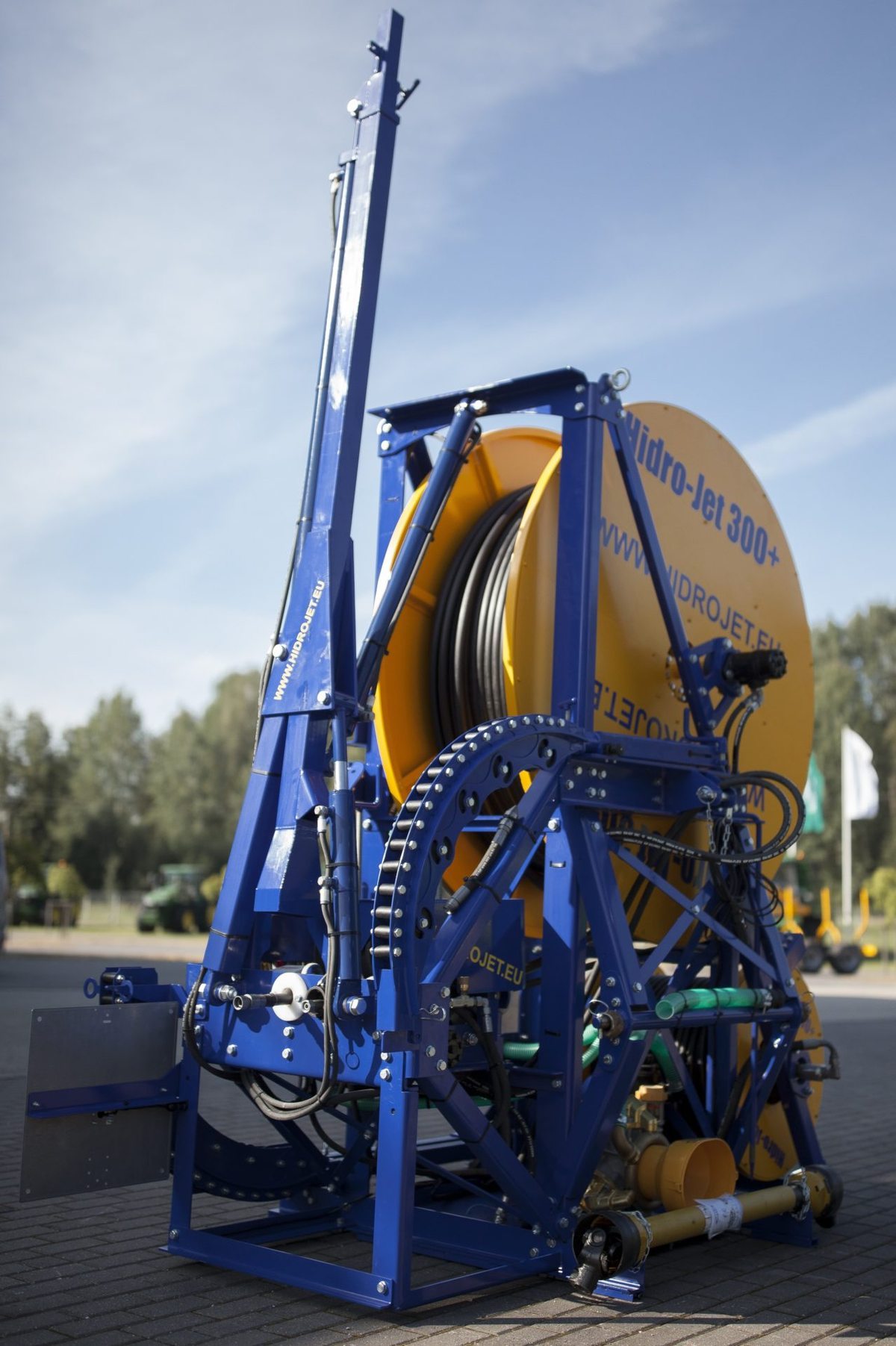

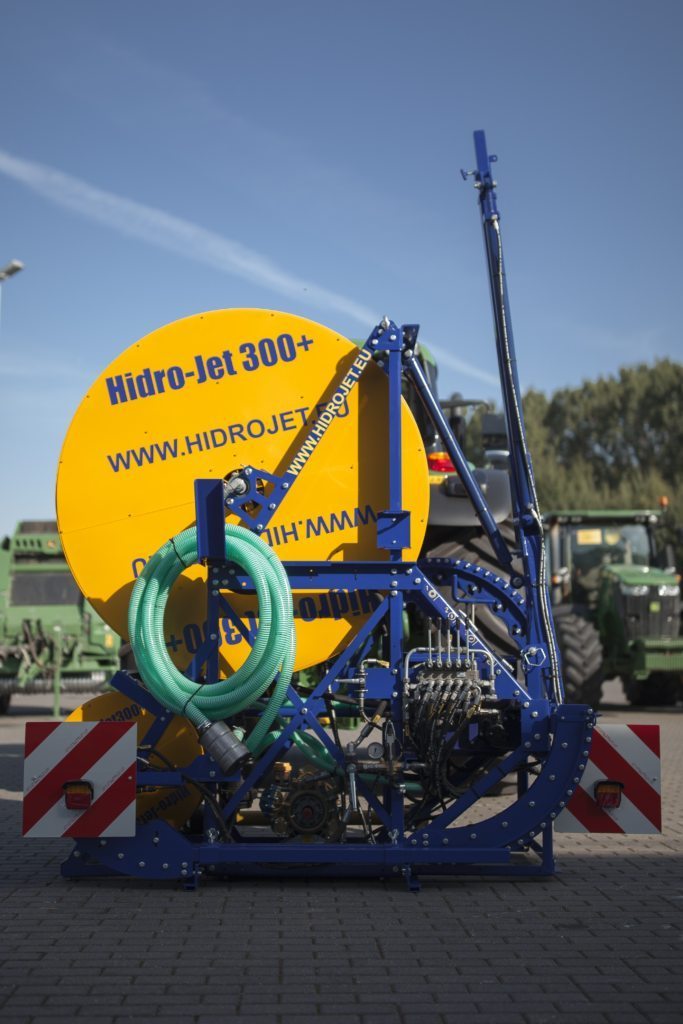

Hidro-Jet 300+
- Simply and easy to use
- Fully automatic
- Screwed frame construction
- Low operating costs
- Longest flushing hose on the market
- Low price of the set we offer
- Water saving system
Additional equipment
- Vscan tracking system
- Hydraulic remote control system, portion type and ON/OFF system
- Electric pressure relief valve
Technical data
| Hidro-Jet 300 | Hidro-Jet 300+ | |||
|---|---|---|---|---|
| Three-point mounting | ||||
| Two-way hydraulic connection | ||||
| Hydraulic control sections | 4 | 5 | ||
| Water pump drive from a PTO | ||||
| Maximum capacity | 125 l/min – 50 bar – 550 apgr./min | |||
| Recommended operating mode | 110 l/min – 25 -35bar – 550 rpm | |||
| Pressure regulator with pressure gauge | ||||
| Venting system | ||||
| Water changeover valve from the DN27 to DN20 flushing pipe | - | |||
| PEH cleaner pipe | Ø 27mm x 5,5mm 300m * Available:Ø 27 mm x 5.5 mm / 500m | |||
| PEH cleaner pipe #2 | - | Ø 20mm x 3.0mm 100m |
||
| Spray head for Ø 27 mm PEH pipe | ||||
| Spray head for Ø 20 mm PEH pipe | - | |||
| Meter counter (pcs.) | 1 | 2 | ||
| Hydraulic motors (pcs.) | 3 | 5 | ||
| Hydraulic cylinders (pcs.) | 3 | 3 | ||
| Hydraulic height and length adjustment of the washer lever arm; Hydraulic insertion and pulling out of the washer lever arm; Hydraulics of the washer lever arm can be adjusted horizontally; The washer lever arm is intended for rinsing from the channel; The washer lever arm is intended for rinsing from the well. |
||||
| WEIGHT | ||||
| Empty | 810 kg | 1 040 kg | ||
| Filled with water | 960 kg | 1 240 kg | ||
| Dimensions | ||||
| Width | 1.45m | 1.45m | ||
| Length | 2.50m | 2.50m | ||
| Height | 3.20m | 3.20m | ||
Photo gallery
Pirmais virsraksts

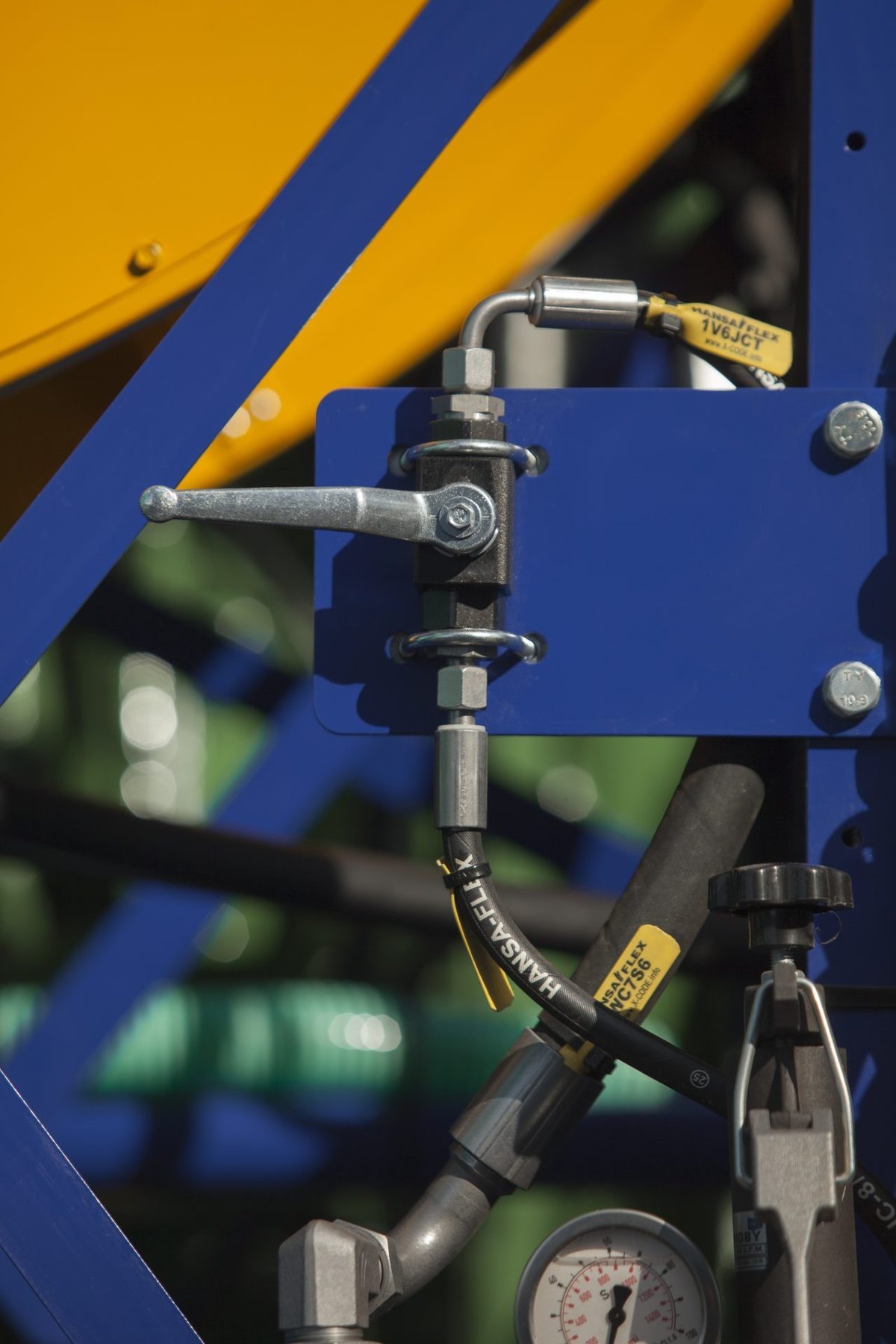

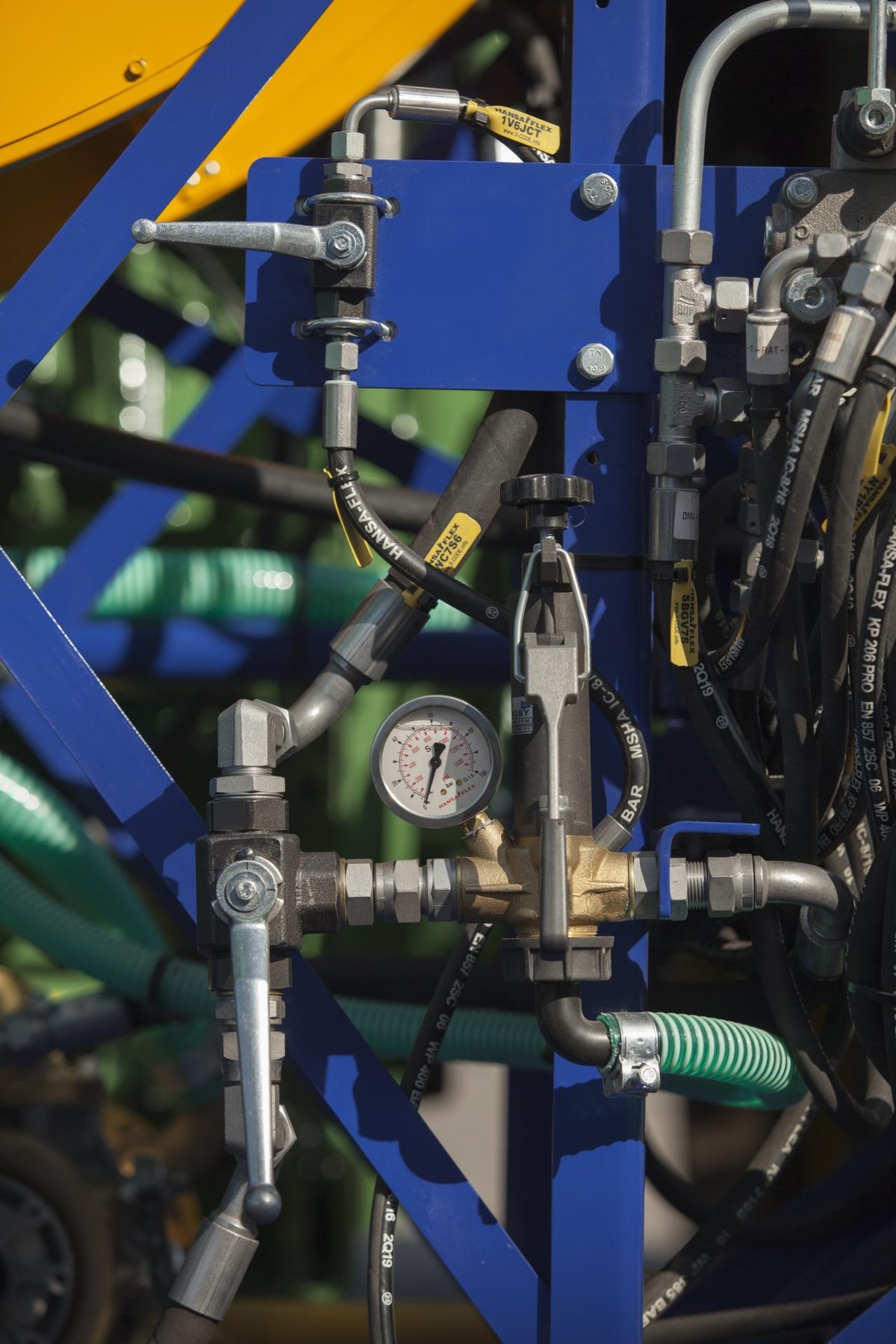

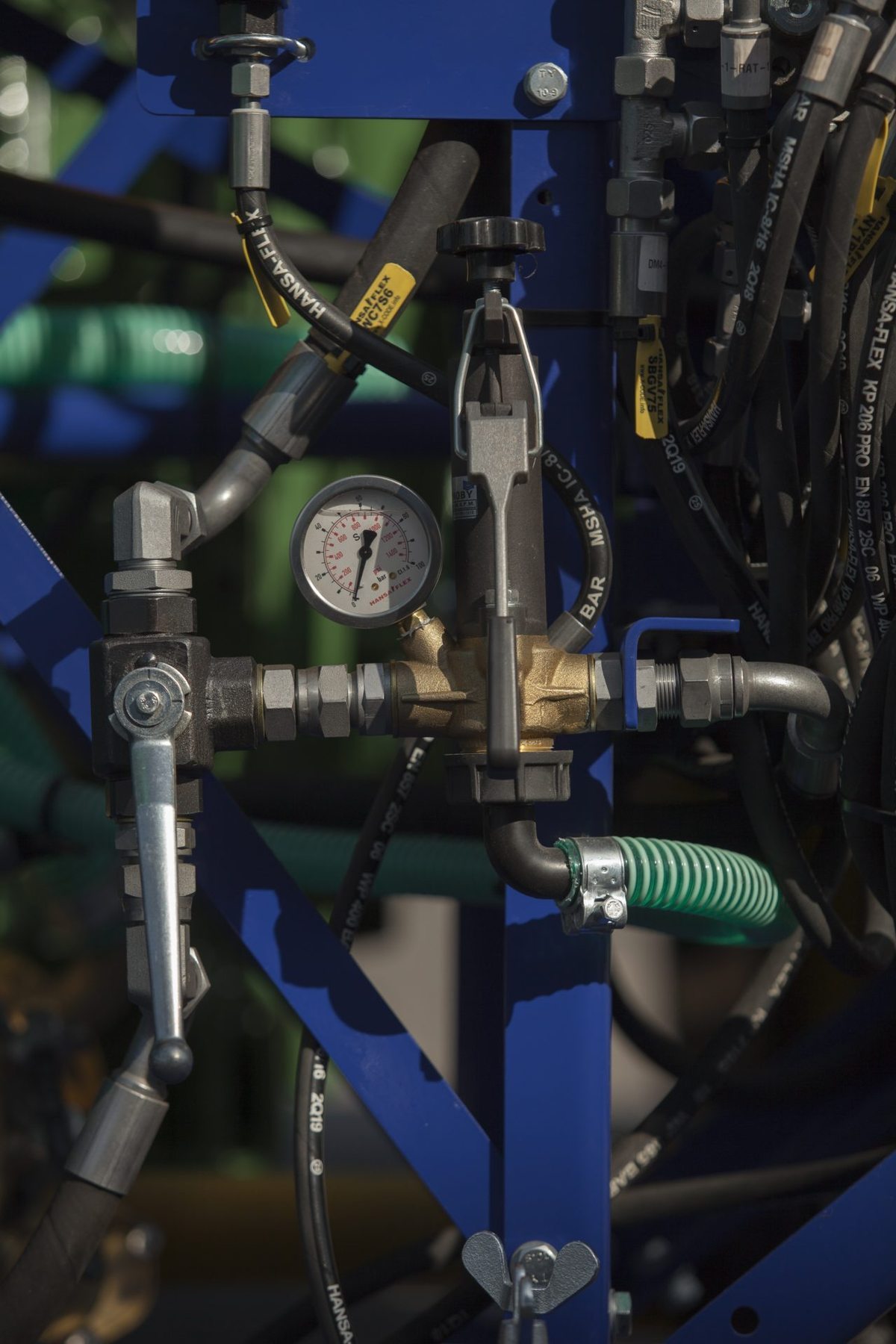

Pressure regulator with pressure gauge
Water pump

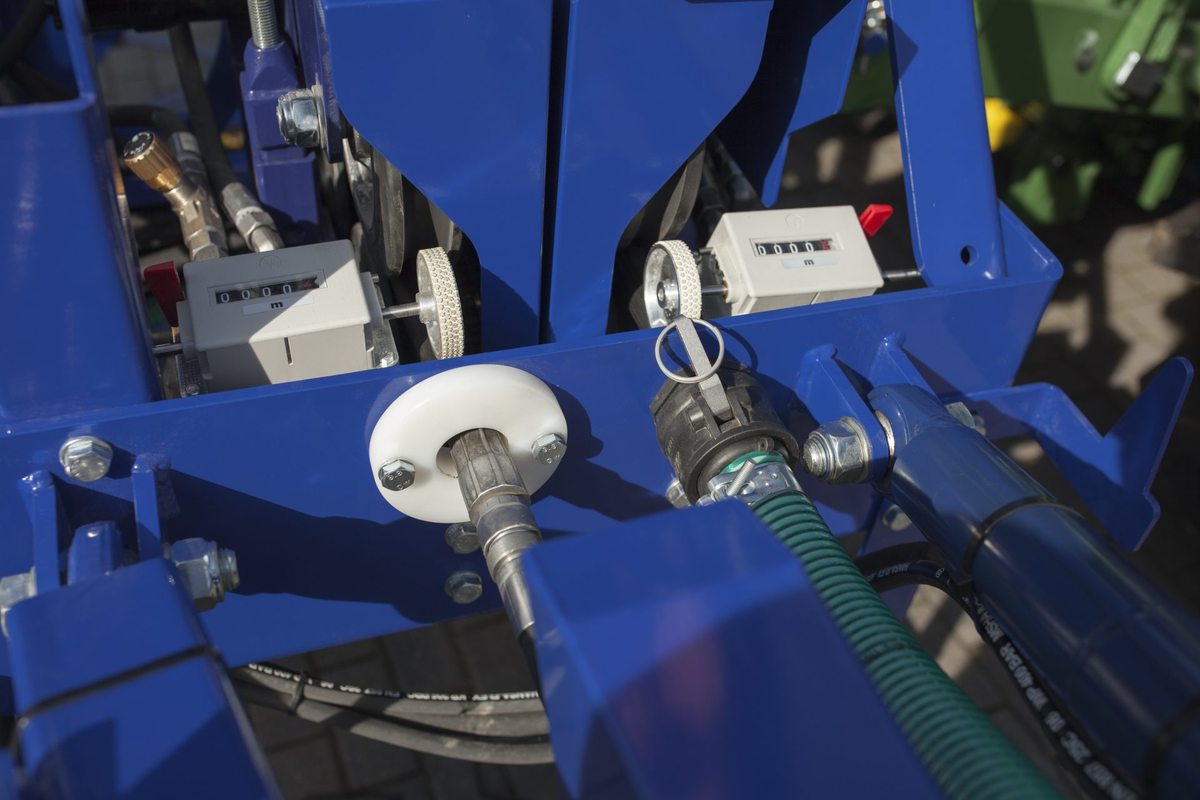

2 caurules un skaitītāji
